Sunnycrest Septic Tanks
Dimensions
Dimensions
| |
Length |
Width |
Height |
Inlet* |
Outlet* |
| 500G 1 Compartment |
127" |
65" |
35 1/2" |
24" |
21" |
| 750G 1 Compartment |
92" |
51" |
68" |
55" |
52" |
| 1000G 1
Compartment |
95" |
61" |
66" |
58" |
55" |
| 1000G 2 Compartment |
95" |
61" |
66" |
58" |
55" |
| 1250G 2 Compartment |
127" |
65" |
60" |
47" |
45" |
| 1500G
2 Compartment |
127" |
65" |
72" |
59" |
57" |
| |
Length |
Width |
Height |
Inlet* |
Outlet* |
| 1000G Low Profile |
127" |
65" |
53" |
40" |
38" |
* Inlet/Outlet measured from the bottom of the tank to the bottom of the inlet/outlet.
* Inlet/Outlet measured from the bottom of the tank to the bottom of the inlet/outlet.
All of the given dimensions are measured on the outside of the chambers.

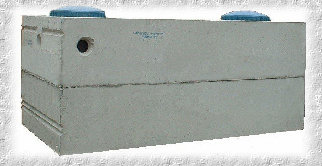

Regular Two Compartment Tank
Low Profile Two Compartment Tank
